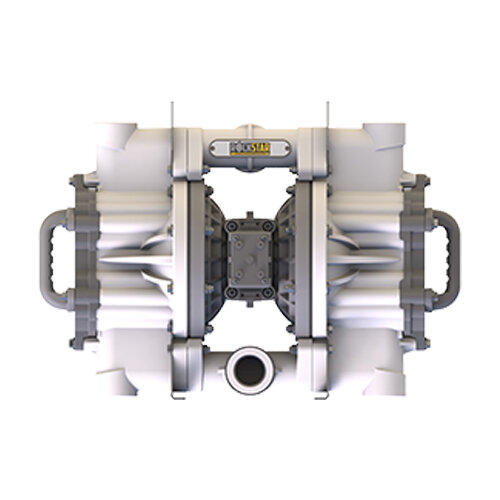

Air-operated diaphragm pump | 1 Inch | VMV10BKPTRTK100UCA

SKU: VMB20FPPN0SS000BRA

Category: Air-operated diaphragm pumps

HAN: VMB20FPPN0SS000BRA

Air-operated diaphragm pump dry self-priming
Port size: 2 Inch
Flow rate: max. 644 litres per minute
Delivery pressure: max. 6,9 bar
Diaphragm material: Neoprene
Solids size: max. 46 mm

Further technical data

6.491,45 €

incl. 19% VAT , plus

Procurement time: 2 weeks

Notify me when this item is available

Procurement time: 2 weeks

Characteristics Notify me when this item is available

Characteristics

Item information	Value
Housing material (wetted):	Polypropylene
Maximum delivery pressure:	6,9 bar
Maximum operating temperature:	82 °C
Minimum operating temperature:	0 °C
Suction lift (wet):	7,3 metres
Housing design:	Bolted
Housing material (non-wetted):	Polypropylene
Air connection input:	3/4 Inch
Air connection output:	Integrated silencer
Diaphragm Material:	Neoprene
Suction lift (dry):	5,8 metres
Connection size:	2 Inch
Port size (pressure side):	2 Inch BSPT
Port size (suction side):	2 Inch
Explosion protection (ATEX):	Without Explosion protection (ATEX)
FDA compliant:	Without FDA compliance
Displacement per Stroke:	1,90 litres
Connection Type:	BSP
Check valve material:	Stainless Steel
Seats material:	Stainless Steel
Flow rate (l/min):	100–200 l/min 200–400 l/min 400–700 l/min
Maximum solids size:	46,0 mm
Flow rate:	644 Litres per minute
Connection standard:	BSP (pipe thread G/R)
Air inlet (inch):	3/4"
Wetted housing:	Polypropylene
Non-wetted housing:	Polypropylene
Diaphragm:	Neoprene (CR)
Check valve:	Stainless steel
Valve seat:	Stainless steel
Max. pressure (bar):	6,9
Max. temperature (°C):	up to 40 °C up to 60 °C up to 80 °C
Min. temperature (°C):	0
Port size (inch):	(DN 50) 2"
Max. solids size (mm):	up to 1 mm up to 3 mm up to 6 mm up to 10 mm up to 20 mm
Dry suction lift (m):	from 2 m from 3 m from 4 m from 5 m
Wet suction lift (m):	7,3
Displacement per stroke (l):	1,9
Housing design:	bolted
ATEX:	no
FDA compliant:	no
Shipping weight:	24,00 kg
Item weight:	24,00 kg
Dimensions ( Length × Width × Height ):	32,10 × 74,20 × 53,10 cm
