Description

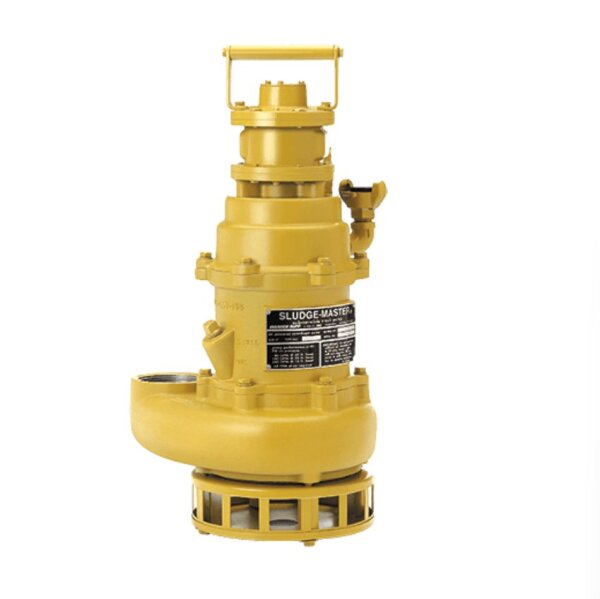

Air Driven VSMA3,6AM1 Submersible SludgeMaster – Built for Tough Jobs
For a pump that handles mud, leaves, sand, and solids up to 1.5" without clogging, choose the SludgeMaster™ air-driven high-flow pump. This trash pump delivers up to 300 GPM (1,136 LPM) — our highest flow rate — and runs on compressed air for continuous power supply.
Weighing just 59 lbs (26.7 kg), the SludgeMaster is engineered for rough handling and long life on land, sea, or offshore.
When fast dewatering is critical, the SludgeMaster delivers:
- Highest flow rates: up to 300 GPM
- Air-powered operation — no electricity required
- Handles mud, sand, leaves, and solids up to 1.5" without clogging
- Compact, rugged, and fully submersible
Technical Specifications (English):
- Model: SludgeMaster SMA3-A (P/N VSMA3-6AM1)
- Pump Type: 3″ air-driven centrifugal pump
- Max Flow Rate: 300 GPM (1,136 L/min)
- Max Solids Handling: 1.5″ (38 mm)
- Maximum Air Pressure: 100 PSI (7 bar)
- Air Consumption: approx. 70 CFM @ 80 PSI
- Housing: Aluminum (356-T6)
- Impeller: Ductile iron
- Weight: 59 lbs (26.7 kg)
- Connections: Air Inlet 0.50" NPT, Air Outlet 0.75" NPT, Liquid Discharge 3" NPT (female)
- Models: VSMA3,6AM1
Application Examples:
- Construction – pumping mud and sludge
- Municipalities & Utilities
- Sewer and wastewater cleaning
- Mining and industrial slurries
- Oil & gas industry
- Emergency flood dewatering
Characteristics
| Item information | Value |
|---|---|
| Housing material (wetted): | Stainless Steel |
| Diaphragm Material: | Teflon® - PTFE |
| Maximum delivery pressure: | 8,6 bar |
| Maximum operating temperature: | 104 °C |
| Minimum operating temperature: | -37 °C |
| Suction lift (wet): | 7,6 Meter |
| Housing design: | Clamped |
| Housing material (non-wetted): | Nickel-plated aluminium |
| Air connection output: | 1/2 Inch |
| Suction lift (dry): | 4,6 metres |
| Connection size: | 1,5 Inch |
| Port size (pressure side): | 1 1/2 Inch |
| Port size (suction side): | 1 1/2 Inch |
| Explosion protection (ATEX): | Without Explosion protection (ATEX) |
| FDA compliant: | 3A |
| Displacement per Stroke: | 1,1 litres |
| Connection Type: | TRI-CLAMP |
| Check valve material: | Teflon® - PTFE |
| Seats material: | Stainless Steel |
| Maximum solids size: | 4,8 mm |
| Flow rate: | 193 Litres per minute |
| Flow rate: | 125 - 193 litres per minute |
Spare parts, data sheets & manuals
Spare Parts
In dieser .PDF-Datei finden Sie alle zur Pumpe passenden Ersatzteile.
Data Sheet
In dieser .PDF-Datei finden Sie das zur Pumpe passende Datenblatt.
Manual
In dieser .PDF-Datei finden Sie das zur Pumpe passende Handbuch.
