Description

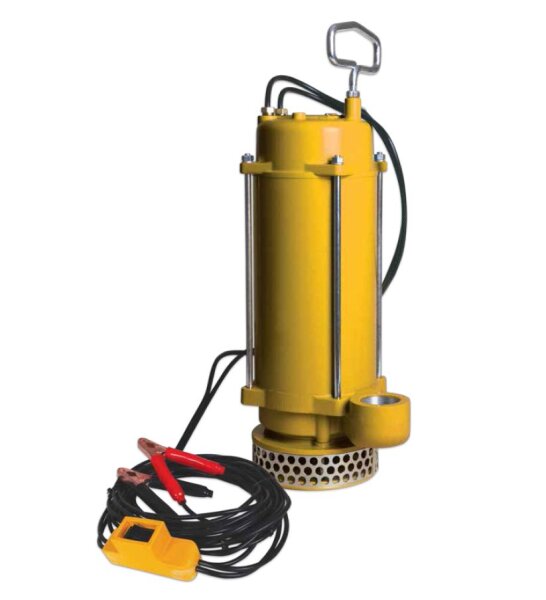

The SPA 15 Porta-Matic is a rugged, portable submersible pump powered by any 12-volt car or truck battery.
Weighing only 33 lbs (15 kg),
it fits through openings as small as 10” and delivers up to 43 gpm (163 lpm).
Equipped with 30-foot cables, waterproof remote controller, and lifetime-lubricated bearings.
Perfect for rapid dewatering of ditches, manholes, and job sites.
Technical Specifications (English):
- Max Flow: 43 GPM (163 LPM)
- Porting: 1 ½” NPT/BSP
- Casing: Aluminum
- Impeller: Cast Iron
- Max Solids Handling: 0.38” (9.5 mm)
-
Models:
- NPT: SPA15 or SPA15-APP
- BSP: SPA15-BSP or SPA15-BSP-APP
Characteristics
| Item information | Value |
|---|---|
| Housing material (wetted): | Stainless Steel |
| Diaphragm Material: | Teflon® - PTFE |
| Maximum delivery pressure: | 8,6 bar |
| Maximum operating temperature: | 104 °C |
| Minimum operating temperature: | -37 °C |
| Suction lift (wet): | 7,6 Meter |
| Housing design: | Clamped |
| Housing material (non-wetted): | Nickel-plated aluminium |
| Air connection output: | 1/2 Inch |
| Manufacturer series: | Versamatic Elima-Matic |
| Max. pressure (bar): | 8,6 |
| Flow rate (l/min): | 50–100 l/min100–200 l/min |
| Wetted housing: | Stainless steel |
| Port size (inch): | (DN 40) 1 1/2" |
| Suction lift (dry): | 4,6 metres |
| Connection size: | 1,5 Inch |
| Port size (pressure side): | 1 1/2 Inch |
| Port size (suction side): | 1 1/2 Inch |
| Explosion protection (ATEX): | Without Explosion protection (ATEX) |
| FDA compliant: | 3A |
| Displacement per Stroke: | 1,1 litres |
| Connection Type: | TRI-CLAMP |
| Check valve material: | Teflon® - PTFE |
| Seats material: | Stainless Steel |
| Maximum solids size: | 4,8 mm |
| Flow rate: | 193 Litres per minute |
| Flow rate: | 125 - 193 litres per minute |
| Connection standard: | Tri-Clamp (sanitary) |
| Non-wetted housing: | Nickel-plated aluminium |
| Diaphragm: | PTFE |
| Diaphragm type: | FUSION |
| Check valve: | PTFE |
| Valve seat: | Stainless steel |
| Max. temperature (°C): | up to 40 °Cup to 60 °Cup to 80 °Cup to 100 °C |
| Min. temperature (°C): | -37 |
| Max. solids size (mm): | up to 1 mmup to 3 mm |
| Dry suction lift (m): | from 4 mfrom 2 mfrom 3 m |
| Wet suction lift (m): | 7,6 |
| Displacement per stroke (l): | 1,1 |
| Housing design: | clamped |
| ATEX: | no |
| FDA compliant: | yes |
