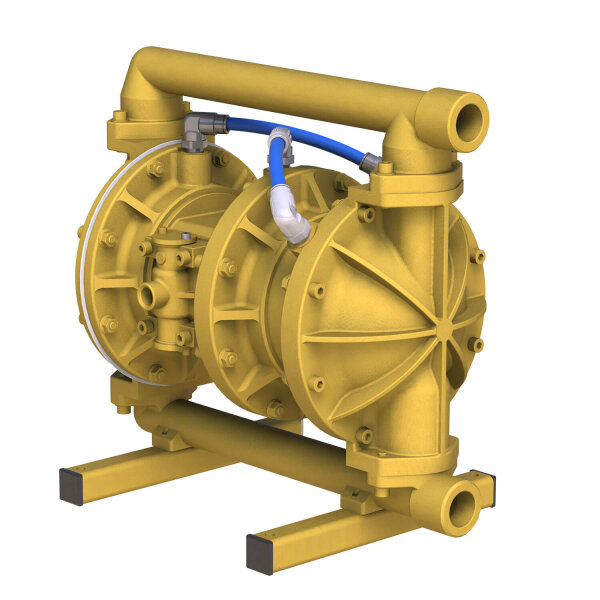

Repair kit (air) 476.V392.000 for air-operated diaphragm pump

SKU: 476.V392.000
Category: Repair Kit Selection Tool

Please note the breakdown of the pump article number so that you order the correct repair kit! You can find more information here.

399,00 €
excl. 19% VAT , plus shipping costs
  • Procurement time: 2 weeks
  • Delivery time: 1 - 3 Workdays (Abroad deviating)
pc(s).
  • Procurement time: 2 weeks
  • Delivery time: 1 - 3 Workdays (Abroad deviating)
Description

We supply all Versa-Matic diaphragm pumps parts with fast shipment.

Versamatic a Brand of Warren Rupp is a leading global manufacturer of air-operated double diaphragm pumps, diaphragms, balls, ball seats, casings, o-rings and gaskets.

Repair kit (air) 476.V392.000 for air-operated diaphragm pump

Kit-Components
Kit Number Kit Description Quantity Components Component Description
476.V392.000 Kit - AIR 1'' HP 1 25-089 BUSHING, BLAGDON PUMP
1 25-090 SPACER BUSH - NYOIL
3 25-091 BLAGDON SEAL/SHAFT
1 25-092 DIAPHRAGM, AIR CHAMBER
1 25-104 AIR HOSE, LH (140mm LG)
1 25-105 AIR HOSE RH 180MM LG 12MM OD
1 25-114 SHAFT SEAL GUIDE
1 40-204 GASKET
2 50-206 SEAL, DIAPHRAGM SHAFT
4 G189 O-RING- BUNA-N
6 G242 O-RING
2 G243 O-RING
2 G245 O-RING- BUNA-N
8 G339 O-RING - NITRILE 8.1 x 1.6MM
2 G367 O-RING - NITRILE 29.6 x 2.4MM
1 G373 O-RING- NITRILE
2 G512 O-RING, BUNA
Characteristics
Item information Value
Model: E
Port size: 1
Wetted housing material: AS
Non-wetted housing material: A
Housing version: 9
Revision level: A
Option: HP-ATEXHP-B-ATEX
