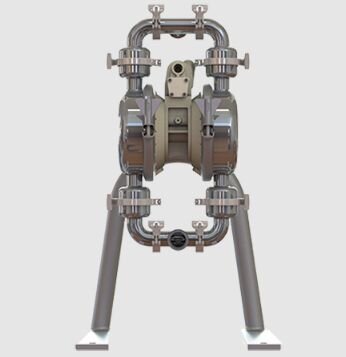

Air-operated diaphragm pump | 1 1/2 Inch | E4SJYXY40-SP-ATEX

SKU: E4SJYXY40-SP-ATEX
Category: Diaphragm pump
  • HAN: E4SJYXY40-SP-ATEX

E4SJYXY40-SP-ATEX HYGIENIC AODD PUMP  3-A sanitary standards

  • Self-priming air-operated diaphragm pump (dry)
  • Connection size: 1 1/2 Inch
  • Flow rate: 265 Litres per minute
  • Delivery pressure: max. 8,6 bar
  • With explosion protection (ATEX)
  • With FDA compliance
  • Housing material: Stainless Steel
  • Diaphragm material: FDA Santoprene Thermo-Matic
  • Solids size: 4,76 mm
13.736,17 €
incl. 19% VAT , plus shipping costs
  • Procurement time: 2 weeks
  • Delivery time: 5 - 10 Workdays (Abroad deviating)
  • Procurement time: 2 weeks
  • Delivery time: 5 - 10 Workdays (Abroad deviating)
Characteristics
Item information Value
Housing material (wetted): Stainless Steel
Maximum delivery pressure: 8,6 bar
Maximum operating temperature: 135 °C
Minimum operating temperature: -40 °C
Suction lift (wet): 7,6 Meter
Housing design: Clamped
Housing material (non-wetted): Nickel-plated aluminium
Air connection output: 3/4 Inch
Air connection input: 1/2 Inch
Max. pressure (bar): 8,6
Flow rate (l/min): 50–100 l/min100–200 l/min
Wetted housing: Stainless steel
Port size (inch): (DN 40) 1 1/2"
Diaphragm Material: FDA Santoprene Thermo-Matic
Suction lift (dry): 4,5 metres
Connection size: 1,5 Inch
Port size (pressure side): 2 Inch
Port size (suction side): 2 Inch
Explosion protection (ATEX): With Explosion protection (ATEX)
FDA compliant: With FDA compliance 1935/2004 and 2023/2006
Displacement per Stroke: 1,17 litres
Connection Type: TRI-CLAMP
Check valve material: FDA Santoprene
Seats material: FDA Santoprene
Maximum solids size: 4,76 mm
Flow rate: 268 Litres per minute
Connection standard: Tri-Clamp (sanitary)
Air inlet (inch): 1/2"
Non-wetted housing: Nickel-plated aluminium
Diaphragm: Santoprene (TPE)
Diaphragm type: Thermo-Matic
Check valve: Santoprene (TPE)
Valve seat: Santoprene (TPE)
Max. temperature (°C): up to 40 °Cup to 60 °Cup to 80 °Cup to 100 °Cup to 120 °C
Min. temperature (°C): -40
Max. solids size (mm): up to 1 mmup to 3 mm
Dry suction lift (m): from 2 mfrom 3 mfrom 4 m
Wet suction lift (m): 7,6
Displacement per stroke (l): 1,17
Housing design: clamped
ATEX: yes
FDA compliant: yes
Shipping weight: 25,85 kg
Item weight: 25,85 kg
Dimensions ( Length × Width × Height ): 41,90 × 29,00 × 44,00 cm
Product safety information
Manufacturer information:
Versamatic

, ,
