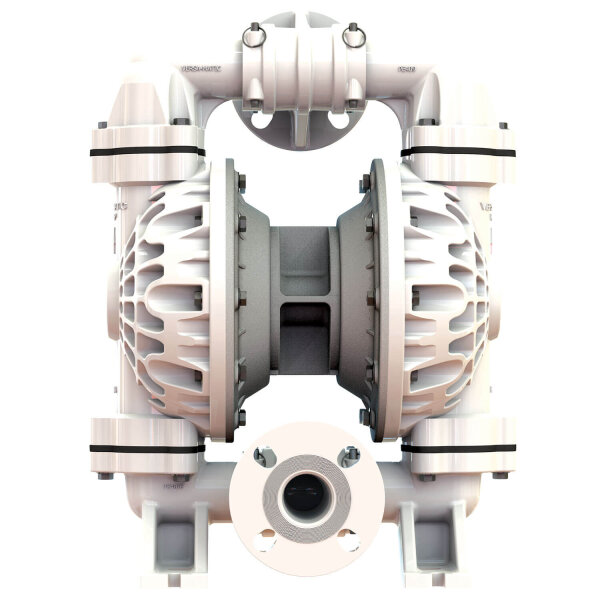

Air-operated diaphragm pump | 1 1/2 Inch | E4KA6X669

SKU: E4KA6X669
Category: Diaphragm pump
  • Self-priming air-operated diaphragm pump (dry)
  • Connection size: 1 1/2 Inch
  • Flow rate: 272 Litres per minute
  • Delivery pressure: max. 8,6 bar
  • Housing material: PVDF - Kynar
  • Diaphragm material: Santoprene
  • Solids size: 4,76 mm
Prices visible after login
  • Procurement time: 2 weeks
  • Delivery time: 1 - 3 Workdays (Abroad deviating)
pc(s).
  • Procurement time: 2 weeks
  • Delivery time: 1 - 3 Workdays (Abroad deviating)

Characteristics

Flow rate: 272 Litres per minute
Connection size: 1 1/2 Inch (38 mm)
Housing material (wetted): PVDF - Kynar
FDA compliant: Without FDA compliance
Diaphragm Material: Santoprene
Explosion protection (ATEX): Without Explosion protection (ATEX)
Connection Type: Flanged Center Ported
Maximum delivery pressure: 8,6 bar
Maximum operating temperature: 121 °C
Minimum operating temperature: -18 °C
Maximum solids size: 4,76 mm
Suction lift (wet): 7,6 Meter
Suction lift (dry): 4,5 metres
Displacement per Stroke: 1,17 litres
Housing design: Bolted
Housing material (non-wetted): Aluminum
Air connection output: 3/4 Inch NPT
Air connection input: 1/2 Inch NPT
Port size (suction side): 1 1/2 Inch
Port size (pressure side): 1 1/2 Inch
Check valve material: Santoprene
Seats material: Santoprene XL
Shipping weight: 25,00 kg
Item weight: 25,00 kg
