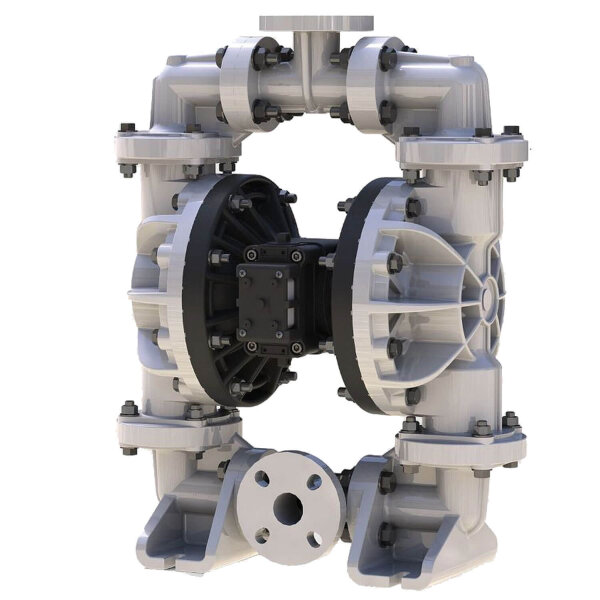

Versamatic Elima-Matic E40PP6X659A – air-operated diaphragm pump 1 1/2 inch, polypropylene
Is this the right pump for your application? Compare flow rate, pressure, connection and materials of all Versamatic pumps in the pump finder and check in advance whether the materials suit your fluid.
▶ Open pump finder▶ Check compatibility
The E40PP6X659A from the Versamatic Elima-Matic series is a self-priming, bolted air-operated double diaphragm pump with 1 1/2 inch (DN40) NPT ports (range 1 1/2 inch AODD pumps (E40)). It delivers up to 378 l/min at a maximum of 6.9 bar; the permissible fluid temperature is 0 to 82 °C. It is driven by compressed air only – no motor, no shaft seal and no electrical parts. The pump can run dry, can be deadheaded and its output is infinitely variable via the air pressure.
The wetted housing in polypropylene (PP) is particularly suitable for acids, caustics, plating and waste water treatment as well as aqueous chemicals. The Santoprene® (TPE) diaphragm (Thermo-Matic) is an abrasion-resistant TPE diaphragm with long service life for acids, caustics and abrasive fluids.
⚠ Important: check chemical compatibility. Whether an air-operated diaphragm pump runs reliably over time depends on the wetted materials – for this pump: housing polypropylene (PP), diaphragm Santoprene® (TPE), balls Santoprene® (TPE), seats PTFE. Fluid, concentration and temperature have a major effect on compatibility. Check your fluid with our chemical compatibility tool or send us an enquiry – we will review your application and recommend the right material combination.
Typical applications
- Acids and caustics in chemical and water treatment
- Electroplating, pickling and surface treatment
- Waste water treatment and neutralisation
- Flocculants and precipitants
- Transfer from cans, drums and IBCs
Performance curve E40PP6X659A

Solid lines: air supply pressure, dashed: air consumption. Curve based on water at ambient temperature with flooded suction.
Technical data E40PP6X659A
| Manufacturer / series |
Versamatic (Warren Rupp / IDEX) · Elima-Matic Bolted Plastic |
| Port size |
1 1/2" (DN40) |
| Suction / discharge connection |
1 1/2" NPT (US pipe thread, tapered) |
| Max. flow rate |
378 l/min |
| Max. discharge pressure |
6.9 bar |
| Max. air supply pressure |
6.9 bar (100 psi) |
| Displacement per stroke |
1.60 l |
| Air inlet |
1/2" NPT (US thread) |
| Fluid temperature range |
0 … 82 °C |
| Limited by |
polypropylene (housing) |
| Max. solids size |
12 mm |
| Max. sound pressure level |
89 dB(A) |
| Wetted housing |
polypropylene (PP) |
| Centre section (non-wetted) |
polypropylene (PP) |
| Diaphragm |
Santoprene® XL (TPE) – Thermo-Matic |
| Valve balls / seats |
Santoprene® XL (TPE) / PTFE |
| Dimensions H × W × D |
730 × 584 × 330 mm |
| Weight |
37.0 kg |
Spare parts, downloads and advice
Matching spare parts and repair kits can be found directly in the exploded view; the data sheet with performance curve and dimensional drawing plus the service manual are under Downloads. For advice on material selection or your application, please send us an e-mail enquiry stating fluid, concentration, temperature, flow rate and pressure.
More pumps: All air-operated diaphragm pumps · Versamatic Elima-Matic series · All pumps 1 1/2 inch (DN40) · Pumps with polypropylene housing · Pumps with Santoprene® diaphragm · Pump finder · Repair kits
| Item information |
Value |
| Housing material (wetted): |
Polypropylene |
| Diaphragm Material: |
Santoprene® - TPE |
| Maximum delivery pressure: |
6,9 bar |
| Maximum operating temperature: |
82 °C |
| Minimum operating temperature: |
0 °C |
| Suction lift (wet): |
9,4 Meter |
| Housing design: |
Bolted |
| Housing material (non-wetted): |
Polypropylene |
| Air connection output: |
3/4 Inch |
| Air connection input: |
1 Inch |
| Manufacturer series: |
Versamatic Elima-Matic |
| Max. pressure (bar): |
6,9 |
| Flow rate (l/min): |
100–200 l/min200–400 l/min |
| Wetted housing: |
Polypropylene |
| Port size (inch): |
(DN 40) 1 1/2" |
| Suction lift (dry): |
5,8 metres |
| Connection size: |
1,5 Inch |
| Port size (pressure side): |
1 1/2 Inch |
| Port size (suction side): |
1 1/2 Inch |
| Explosion protection (ATEX): |
Without Explosion protection (ATEX) |
| FDA compliant: |
Without FDA compliance |
| Displacement per Stroke: |
1,7 litres |
| Model: |
Elima-Matic |
| Connection Type: |
Flanged - Center Ported |
| Check valve material: |
Santoprene® - TPE |
| Seats material: |
Teflon® - PTFE |
| Maximum solids size: |
6,0 mm |
| Flow rate: |
378 Litres per minute |
| Flow rate: |
238 - 390 Litres per minute |
| Connection standard: |
Flange ANSI/DIN |
| Port orientation: |
Center ported |
| Air inlet (inch): |
1" |
| Non-wetted housing: |
Polypropylene |
| Diaphragm: |
Santoprene (TPE) |
| Diaphragm type: |
Thermo-Matic |
| Check valve: |
Santoprene (TPE) |
| Valve seat: |
PTFE |
| Max. temperature (°C): |
up to 40 °Cup to 60 °Cup to 80 °C |
| Min. temperature (°C): |
0 |
| Max. solids size (mm): |
up to 1 mmup to 3 mmup to 6 mm |
| Dry suction lift (m): |
from 2 mfrom 3 mfrom 4 mfrom 5 m |
| Wet suction lift (m): |
9,4 |
| Displacement per stroke (l): |
1,7 |
| Housing design: |
bolted |
| ATEX: |
no |
| FDA compliant: |
no |
| Shipping weight: |
37,00 kg
|
| Item weight: |
37,00 kg
|
| Dimensions
( Length × Width × Height ):
|
33,00 × 58,40 × 73,00 cm |
Product safety information
Manufacturer information:
Versamatic
, ,
