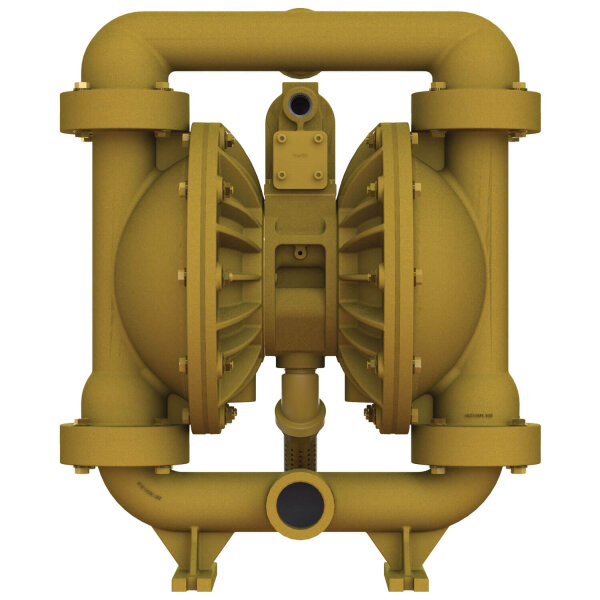

Air-operated diaphragm pump | 1 1/2 Inch | E40AA1D119C-ATEX

SKU: E40AA1D119C-ATEX
Category: Diaphragm pump
  • Self-priming air-operated diaphragm pump (dry)
  • Connection size: 1 1/2 Inch
  • Flow rate: 465 Litres per minute
  • Delivery pressure: max. 8,6 bar
  • With explosion protection (ATEX)
  • Housing material: Aluminum
  • Diaphragm material: Neoprene Dome
  • Solids size: 4,78 mm
Prices visible after login
  • 2 pc(s). item(s) ready for immediate dispatch
  • Delivery time: 1 - 3 Workdays (Abroad deviating)
pc(s).
  • 2 pc(s). item(s) ready for immediate dispatch
  • Delivery time: 1 - 3 Workdays (Abroad deviating)

Characteristics

Flow rate: 465 Litres per minute
Connection size: 1 1/2 Inch (38 mm)
Housing material (wetted): Aluminum
FDA compliant: Without FDA compliance
Diaphragm Material: Neoprene Dome
Explosion protection (ATEX): With Explosion protection (ATEX)
Connection Type: NPT
Maximum delivery pressure: 8,6 bar
Maximum operating temperature: 93 °C
Minimum operating temperature: -23 °C
Maximum solids size: 4,78 mm
Suction lift (wet): 7,6 Meter
Suction lift (dry): 4,6 metres
Displacement per Stroke: 1,17 litres
Housing design: Bolted
Housing material (non-wetted): Aluminum
Air connection output: 3/4 Inch NPT
Air connection input: 1/2 Inch NPT
Port size (suction side): 1 1/2 Inch
Port size (pressure side): 1 1/2 Inch
Check valve material: Neoprene
Seats material: Neoprene
Shipping weight: 25,00 kg
Item weight: 25,00 kg
