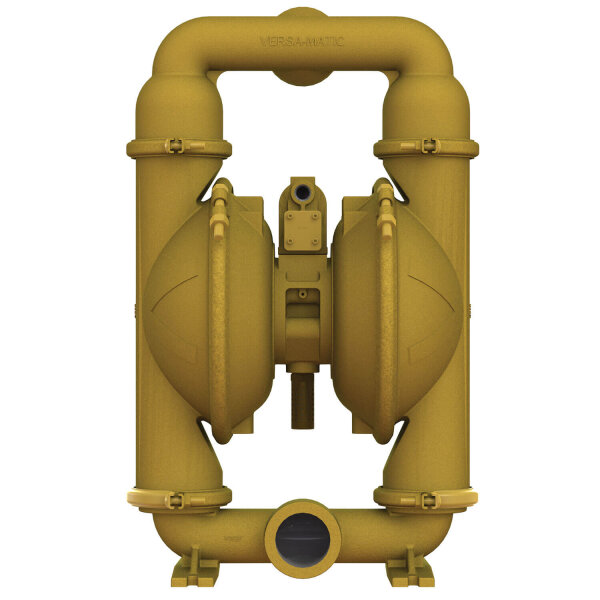

Air-operated diaphragm pump | 3 Inch | E3CA7X770C-ATEX

SKU: E3CA7X770C-ATEX
Category: Diaphragm pump
  • Self-priming air-operated diaphragm pump (dry)
  • Connection size: 3 Inch
  • Flow rate: 886 Litres per minute
  • Delivery pressure: max. 8,6 bar
  • With explosion protection (ATEX)
  • Housing material: Cast Iron
  • Diaphragm material: FDA Hytrel Thermo-Matic
  • Solids size: 9,5 mm
Prices visible after login
  • Procurement time: 2 weeks
  • Delivery time: 5 - 10 Workdays (Abroad deviating)
pc(s).
  • Procurement time: 2 weeks
  • Delivery time: 5 - 10 Workdays (Abroad deviating)

Characteristics

Flow rate: 886 Litres per minute
Connection size: 3 Inch (76,2 mm)
FDA compliant: Without FDA compliance
Housing material (wetted): Cast Iron
Diaphragm Material: FDA Hytrel Thermo-Matic
Explosion protection (ATEX): With Explosion protection (ATEX)
Connection Type: NPT
Maximum delivery pressure: 8,6 bar
Maximum operating temperature: 104 °C
Minimum operating temperature: -29 °C
Maximum solids size: 9,5 mm
Suction lift (wet): 9,8 Meter
Suction lift (dry): 6,1 metres
Displacement per Stroke: 5,10 litres
Housing design: Clamped
Housing material (non-wetted): Aluminum
Air connection output: 1 Inch NPT
Air connection input: 1/2 Inch NPT
Port size (suction side): 3 Inch
Port size (pressure side): 3 Inch
Check valve material: FDA Hytrel
Seats material: FDA Hytrel
Shipping weight: 93,00 kg
Item weight: 93,00 kg
