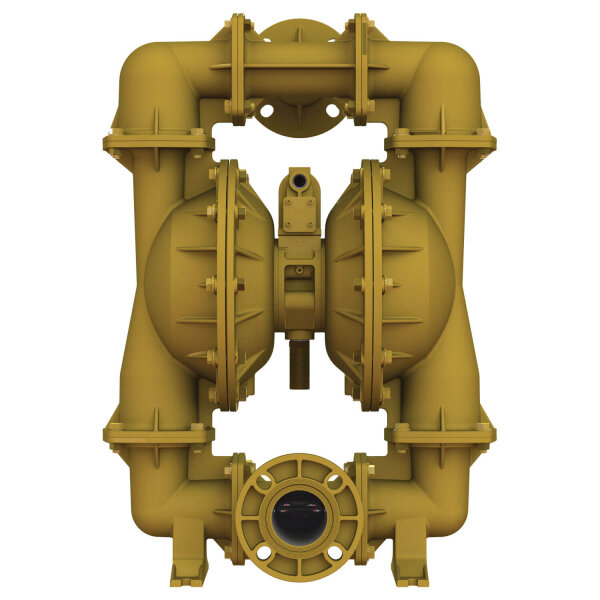

Air-operated diaphragm pump | 3 Inch | E3AA3R339C-ATEX

SKU: E3AA3R339C-ATEX
Category: Diaphragm pump
  • Self-priming air-operated diaphragm pump (dry)
  • Connection size: 3 Inch
  • Flow rate: 1033 Litres per minute
  • Delivery pressure: max. 8,6 bar
  • With explosion protection (ATEX)
  • Housing material: Aluminum
  • Diaphragm material: FKM - Viton Rugged
  • Solids size: 9,5 mm
Prices visible after login
  • Procurement time: 2 weeks
  • Delivery time: 1 - 3 Workdays (Abroad deviating)
pc(s).
  • Procurement time: 2 weeks
  • Delivery time: 1 - 3 Workdays (Abroad deviating)

Characteristics

Flow rate: 1033 Litres per minute
Connection size: 3 Inch (76,2 mm)
Housing material (wetted): Aluminum
FDA compliant: Without FDA compliance
Diaphragm Material: FKM - Viton Rugged
Explosion protection (ATEX): With Explosion protection (ATEX)
Connection Type: Flanged-Horizontal Discharge
Maximum delivery pressure: 8,6 bar
Maximum operating temperature: 177 °C
Minimum operating temperature: -40 °C
Maximum solids size: 9,5 mm
Suction lift (wet): 9,4 Meter
Suction lift (dry): 4,9 metres
Displacement per Stroke: 5,50 litres
Housing design: Bolted
Housing material (non-wetted): Aluminum
Air connection output: 1 Inch NPT
Air connection input: 1/2 Inch NPT
Port size (suction side): 3 Inch
Port size (pressure side): 3 Inch
Check valve material: FKM - Viton
Seats material: FKM - Viton
Shipping weight: 66,20 kg
Item weight: 66,20 kg
