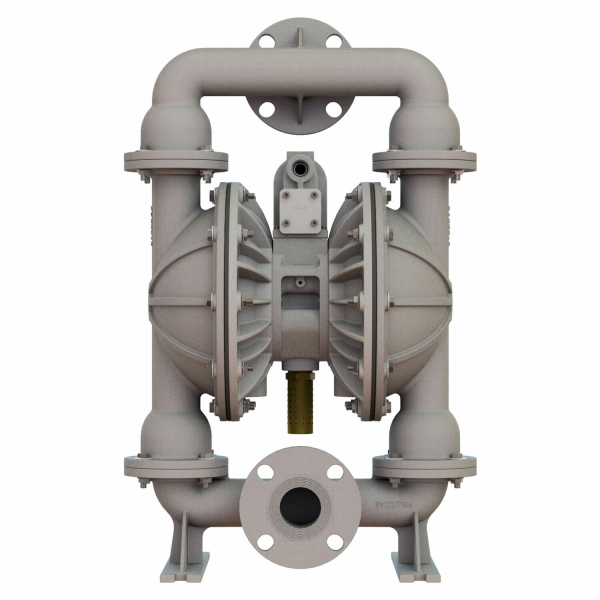

Versamatic Elima-Matic E2SA6D5S9C-HD-ATEX – air-operated diaphragm pump 2 inch, stainless steel
Is this the right pump for your application? Compare flow rate, pressure, connection and materials of all Versamatic pumps in the pump finder and check in advance whether the materials suit your fluid.
▶ Open pump finder▶ Check compatibility
The E2SA6D5S9C-HD-ATEX from the Versamatic Elima-Matic series is a self-priming, bolted air-operated double diaphragm pump with 2 inch (DN50) NPT ports (range 2 inch AODD pumps (E2)). It delivers up to 606 l/min at a maximum of 8.6 bar; the permissible fluid temperature is -37 to 104 °C. It is driven by compressed air only – no motor, no shaft seal and no electrical parts. The pump can run dry, can be deadheaded and its output is infinitely variable via the air pressure.
The wetted housing in 316 stainless steel is particularly suitable for chemicals, solvents, cleaning agents and demanding process fluids. The Santoprene® (TPE) diaphragm (Dome) is an abrasion-resistant TPE diaphragm with long service life for acids, caustics and abrasive fluids. The discharge port is oriented horizontally. The ATEX version is approved for use in potentially explosive atmospheres – see the nameplate and declaration of conformity for the marking.
⚠ Important: check chemical compatibility. Whether an air-operated diaphragm pump runs reliably over time depends on the wetted materials – for this pump: housing 316 stainless steel, diaphragm Santoprene® (TPE), balls PTFE, seats stainless steel with PTFE O-rings. Fluid, concentration and temperature have a major effect on compatibility. Check your fluid with our chemical compatibility tool or send us an enquiry – we will review your application and recommend the right material combination.
Typical applications
- Chemical industry: solvents, acids and caustics (check compatibility)
- Paints, coatings and resins in process engineering
- Cleaning and disinfection fluids
- Pharmaceutical and cosmetic intermediates
- Transfer from drums and IBC containers
- Use in potentially explosive atmospheres (zone as marked)
Performance curve E2SA6D5S9C-HD-ATEX

Solid lines: air supply pressure, dashed: air consumption. Curve based on water at ambient temperature with flooded suction.
Technical data E2SA6D5S9C-HD-ATEX
| Manufacturer / series |
Versamatic (Warren Rupp / IDEX) · Elima-Matic Bolted Metal |
| Port size |
2" (DN50) |
| Suction / discharge connection |
2" NPT (US pipe thread, tapered) |
| Max. flow rate |
606 l/min |
| Max. discharge pressure |
8.6 bar |
| Max. air supply pressure |
8.6 bar (125 psi) |
| Displacement per stroke |
1.90 l |
| Air inlet |
1/2" NPT (US thread) |
| Fluid temperature range |
-37 … 104 °C |
| Limited by |
PTFE (valve balls, seats/O-rings) |
| Suction lift dry / wet |
4.3 m / 9.1 m |
| Max. solids size |
6 mm |
| Max. sound pressure level |
94 dB(A) |
| Wetted housing |
stainless steel 316 |
| Centre section (non-wetted) |
Aluminium |
| Diaphragm |
Santoprene® XL (TPE) – Dome (domed diaphragm) |
| Valve balls / seats |
PTFE / stainless steel with PTFE O-rings |
| Dimensions H × W × D |
711 × 450 × 305 mm |
| Weight |
51.7 kg |
| Explosion protection |
ATEX compliant, see nameplate for marking |
Spare parts, downloads and advice
Matching spare parts and repair kits can be found directly in the exploded view; the data sheet with performance curve and dimensional drawing plus the service manual are under Downloads. For advice on material selection or your application, please send us an e-mail enquiry stating fluid, concentration, temperature, flow rate and pressure.
More pumps: All air-operated diaphragm pumps · Versamatic Elima-Matic series · All pumps 2 inch (DN50) · Pumps with stainless steel housing · Pumps with Santoprene® diaphragm · ATEX diaphragm pumps · Pump finder · Repair kits
| Item information |
Value |
| Housing material (wetted): |
Stainless Steel |
| Diaphragm Material: |
Santoprene® - TPE |
| Maximum delivery pressure: |
8,6 bar |
| Maximum operating temperature: |
104 °C |
| Minimum operating temperature: |
-37 °C |
| Suction lift (wet): |
9,1 Meter |
| Housing design: |
Bolted |
| Housing material (non-wetted): |
Aluminum |
| Air connection output: |
1/2 Inch |
| Air connection input: |
1 Inch |
| Manufacturer series: |
Versamatic Elima-Matic |
| Max. pressure (bar): |
8,6 |
| Flow rate (l/min): |
100–200 l/min200–400 l/min400–700 l/min |
| Wetted housing: |
Stainless steel |
| Port size (inch): |
(DN 50) 2" |
| Suction lift (dry): |
5,5 metres |
| Connection size: |
2 Inch |
| Port size (pressure side): |
2 Inch |
| Port size (suction side): |
2 Inch |
| Explosion protection (ATEX): |
With Explosion protection (ATEX) |
| FDA compliant: |
Without FDA compliance |
| Displacement per Stroke: |
1,9 litres |
| Model: |
Elima-Matic |
| Connection Type: |
Flanged - Horizontal Discharge |
| Check valve material: |
Teflon® - PTFE |
| Seats material: |
Stainless Steel |
| Maximum solids size: |
6,0 mm |
| Flow rate: |
606 Litres per minute |
| Flow rate: |
465 - 727 Litres per minute |
| Connection standard: |
Flange ANSI/DIN |
| Port orientation: |
Horizontal discharge |
| Air inlet (inch): |
1" |
| Non-wetted housing: |
Aluminium |
| Diaphragm: |
Santoprene (TPE) |
| Diaphragm type: |
Versa-Dome |
| Check valve: |
PTFE |
| Valve seat: |
Stainless steel |
| Max. temperature (°C): |
up to 80 °Cup to 100 °Cup to 40 °Cup to 60 °C |
| Min. temperature (°C): |
-37 |
| Max. solids size (mm): |
up to 1 mmup to 3 mmup to 6 mm |
| Dry suction lift (m): |
from 2 mfrom 3 mfrom 4 mfrom 5 m |
| Wet suction lift (m): |
9,1 |
| Displacement per stroke (l): |
1,9 |
| Housing design: |
bolted |
| ATEX: |
yes |
| FDA compliant: |
no |
| Shipping weight: |
65,80 kg
|
| Item weight: |
65,80 kg
|
| Dimensions
( Length × Width × Height ):
|
30,50 × 45,00 × 70,60 cm |
Product safety information
Manufacturer information:
Versamatic
, ,
Explosionszeichnung E2SA6D5S9C-HD-ATEX – Positionen anklicken
Maus über eine Position zeigt Teil und Menge, Klick öffnet das Ersatzteil.EinzelteilKit 476.V019.000laut Manual / ersetzt
Reparatursätze (Kits) für diese Pumpe
Reparatursatz (Luft) 476.V019.000 für Druckluftmembranpumpe (476.V019.000)
besteht aus:
- 1× Satz HÜLSEN UND SPULEN, E2 (031.V015.000)
- 2× DICHTUNG, PUMPENKAMMER, BUNA (360.V001.360)
- 1× SCHMIERFETT, MEHRZWECK-LITHIUM (508.002.000)
- 6× O-RING, BUNA (560.206.360)
- 1× SICHERUNGSRING EXT, .530" CS (675.037.080)
- 1× RING, GLYDE (675.V001.000)
- 1× E40, E2, E3 STEUERHÜLSE KPL. (755.V002.000)
- 1× STEUERKOLBEN, 2-1/2" PILOTVENTIL (775.V002.000)
- 1× DICHTUNG, LUFTVENTIL (P24-202)
- 2× DICHTUNG, ENDDeckel (P24-205)
- 2× O-RING, BUCHSE, BUNA (P24-403)
- 6× GLYD-RING, 2ER-SET (P34-204F)
Ersatzteilliste
| Pos. |
Teilenr. |
Bezeichnung |
Menge je Pumpe |
Kit |
Hinweis |
| 1 |
031.V002.156 |
Valve Body (Includes Items 2-11) |
1 |
|
Baugruppe, enthält Pos. 2-11 |
| 2 |
095.V001.156 |
VENTILKÖRPER, E4 E2 E3 ALUMINIUM |
1 |
|
|
| 3 |
P24-202 |
DICHTUNG, LUFTVENTIL |
1 |
476.V019.000 |
|
| 4 |
755.V006.148 |
HÜLSE, HAUPTLUFTVENTIL, E2, AL |
1 |
|
|
| 5 |
560.206.360 |
O-RING, BUNA |
6 |
476.V019.000 |
|
| 6 |
775.V001.148 |
KOLBEN, HAUPTVENTIL E40, E2, E3 |
1 |
|
|
| 7 |
675.V001.000 |
RING, GLYDE |
6 |
476.V019.000 |
Ersatz für P34-204F |
| 7 |
P34-204F |
Glyde Ring Assembly |
6 |
476.V019.000 |
ersetzt durch 675.V001.000 (aktuelle Versamatic-Stückliste) |
| 8 |
P24-210 |
LUFT- SIEBFILTER |
1 |
|
|
| 9 |
P24-205 |
DICHTUNG, ENDDeckel |
2 |
476.V019.000 |
|
| 10 |
P34-300 |
Deckel, HAUPTLUFT, E2 / E3, AL |
2 |
|
|
| 11 |
S1001 |
Schraube, M5 x .8 20mm SOC HD |
13 |
|
|
| 12 |
P24-400DC ASY |
MITTELTEIL, E2 Baugruppe |
1 |
|
|
| 13 |
P31-403 |
Bearing Sleeve |
2 |
|
enthalten in Pos. 12 |
| 14 |
P24-403 |
Main Shaft O-Ring |
2 |
476.V019.000 |
im Kit 476.V019.000 enthalten |
| 15 |
196.V003.157 |
PUMPENKAMMER, LUFT |
2 |
|
|
| 16 |
360.V001.360 |
Air Chamber Gasket |
2 |
476.V019.000 |
im Kit 476.V019.000 enthalten |
| 17 |
P24-110 |
Schraube, 3/8-16 x 7/8 HEX HD |
8 |
|
|
| 18 |
755.V002.000 |
E40, E2, E3 STEUERHÜLSE KPL. |
1 |
476.V019.000 |
|
| 19 |
560.V004.000 |
O-Ring 560.V004.000 |
6 |
|
Ersatz für 560.101.358 |
| 19 |
560.101.358 |
O-Ring |
6 |
|
ersetzt durch 560.V004.000 (aktuelle Versamatic-Stückliste) |
| 20 |
675.037.080 |
SICHERUNGSRING EXT, .530" CS |
1 |
476.V019.000 |
|
| 21 |
775.V002.000 |
STEUERKOLBEN, 2-1/2" PILOTVENTIL |
1 |
476.V019.000 |
|
| 22 |
560.023.358 |
O-Ring |
8 |
|
enthalten in Pos. 21 |
| 23 |
530.058.000 |
SCHALLDÄMPFER ATEX 1" NPT(M) 530.058.000 |
1 |
|
|
| 24 |
P24-103 |
KOLBENKOLBENSTANGE, E2 Edelstahl |
1 |
|
|
| 25 |
V227TPEXL |
MEMBRANKUPPEL, SANTOPREN |
2 |
|
|
| 26 |
V226B |
PLATTE, 2" INNENMEMBRAN AL |
2 |
|
|
| 27 |
P24-501 |
BUMPERNUNTERLEGSCHEIBE, PPLN |
2 |
|
|
| 28 |
SVB226 |
AUSSENPLATTE, 2 ZOLL, EDELSTAHL |
2 |
|
|
| 29 |
V240T |
O-RING, VENTIL, PTFE |
4 |
|
|
| 30 |
10 |
Valve Seat O-Ring (See Below Material Chart) |
4 |
|
laut Service-Manual, nicht in der aktuellen Stückliste dieser Pumpe |
| 31 |
V241TF |
Ventilkugel 2-1/2" PTFE |
4 |
|
|
| 32 |
SV235FB |
PUMPENKAMMER, AUSSEN, 2" SS VERSCHRAUBT |
2 |
|
|
| 33 |
SV187A |
Schraube 5/16-18 x 1-3/4 |
20 |
|
|
| 34 |
SV189D |
Schraube, SECHSKANT 5/16 X 1 1/2 |
16 |
|
|
| 35 |
SV189C |
UNTERLEGSCHEIBE, 5/16 FLACH SS |
36 |
|
|
| 36 |
SV185B |
FLANSCH-SCHNELLMUTTER 5/16-18 |
36 |
|
|
| 37 |
SV236FB |
Discharge Manifold |
1 |
|
laut Service-Manual, nicht in der aktuellen Stückliste dieser Pumpe |
| 38 |
SV237FB-H |
VERTEILER, 2" ANSAUGUNG Edelstahl |
1 |
|
|
|
710.010.115 |
SCHRAUBE, GEWINDESCHRAUBE, 4-24x1/4, Edelstahl |
4 |
|
|
|
SV236FB-H |
KRÜMMER, AUSLASS SS |
1 |
|
|
|
SV240 |
SITZ, RÜCKSCHLAGVENTIL, EdelstahlER STAHL |
4 |
|
|
Positionen gemäß Versamatic Service-Manual (Composite Repair Parts Drawing), Stückliste 1:1 laut Versamatic für diese Pumpennummer. Graue Zeilen: Positionen aus dem Manual, die in der aktuellen Stückliste anders geführt werden. Teile ohne Pos.-Nr. sind Unterteile/Zubehör. Ersatzteil nicht gefunden? Schreiben Sie uns.
