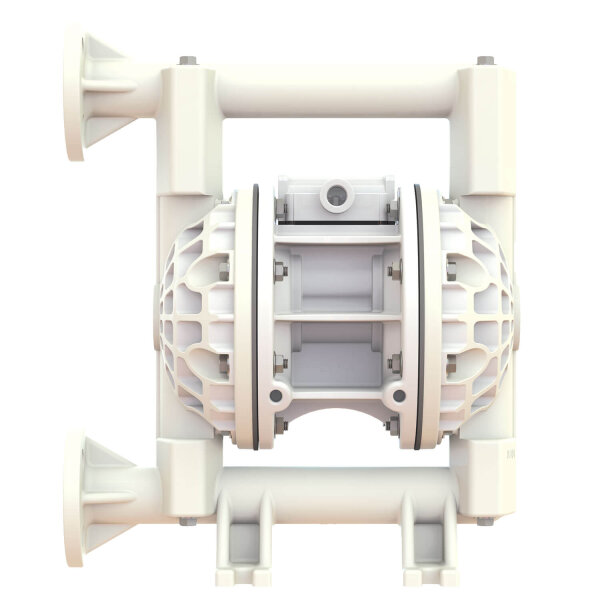

Air-operated diaphragm pump | 1 Inch | E1PP7X7T9C

SKU: E1PP7X7T9C
Category: Diaphragm pump
  • Self-priming air-operated diaphragm pump (dry)
  • Connection size: 1 Inch
  • Flow rate: 163 Litres per minute
  • Delivery pressure: max. 7,0 bar
  • Housing material: Polypropylene
  • Diaphragm material: FDA Hytrel Thermo-Matic
  • Solids size: 3,1 mm
Prices visible after login
  • Procurement time: 2 weeks
  • Delivery time: 1 - 3 Workdays (Abroad deviating)
pc(s).
  • Procurement time: 2 weeks
  • Delivery time: 1 - 3 Workdays (Abroad deviating)

Characteristics

Flow rate: 163 Litres per minute
Connection size: 1 Zoll (25,4 mm)
Housing material (wetted): Polypropylene
Diaphragm Material: FDA Hytrel Thermo-Matic
FDA compliant: Without FDA compliance
Explosion protection (ATEX): Without Explosion protection (ATEX)
Connection Type: Flanged End Ported
Maximum delivery pressure: 7,0 bar
Maximum operating temperature: 82 °C
Minimum operating temperature: 0 °C
Maximum solids size: 3,1 mm
Suction lift (wet): 9,4 Meter
Suction lift (dry): 3,4 metres
Displacement per Stroke: 0,36 litres
Housing design: Bolted
Housing material (non-wetted): Polypropylene
Air connection output: 1/2 Inch NPT
Air connection input: 3/8 Inch NPT
Port size (suction side): 1 Inch 150# ANSI/DIN 325 Flansch
Port size (pressure side): 1 Inch 150# ANSI/DIN 325 Flansch
Check valve material: FDA Hytrel
Seats material: Polypropylene
Shipping weight: 7,70 kg
Item weight: 7,70 kg
